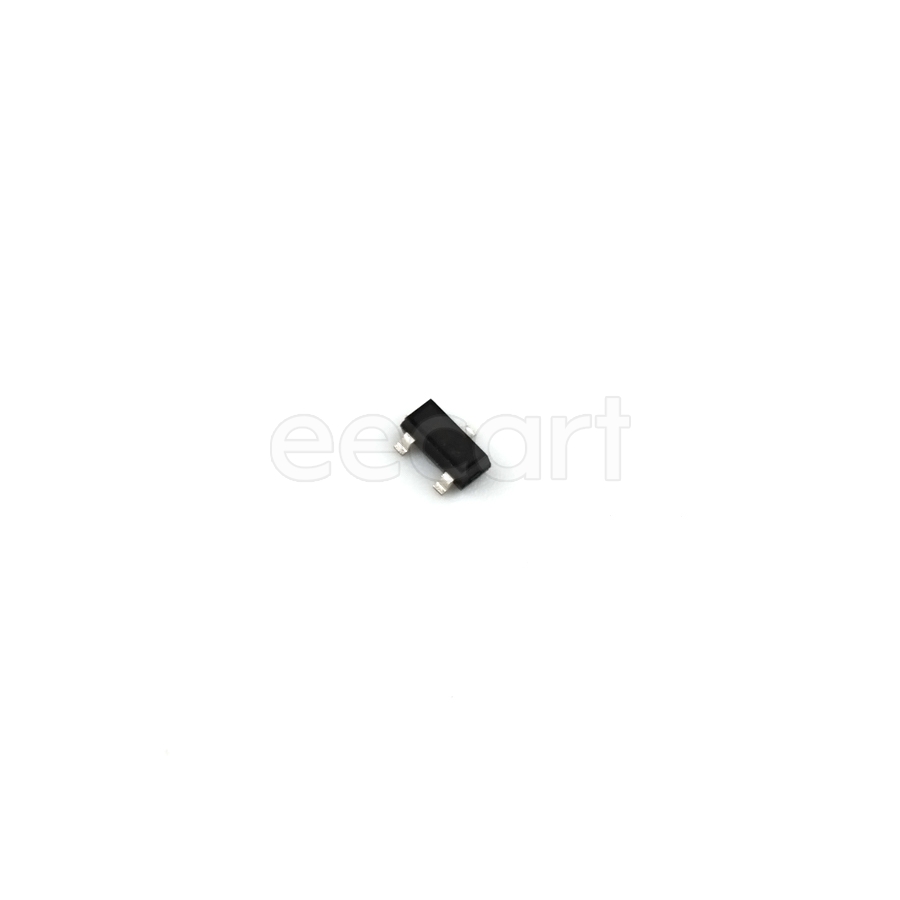

BSS138NH6327XTSA2
Manufacturer:
Infineon
Mfr.Part #:
BSS138NH6327XTSA2
Datasheet:
Description:
MOSFETs PG-SOT-23 SMD/SMT N-Channel number of channels:1 360 mW 60 V Continuous Drain Current (ID):230 mA 1 nC
| Parameter | Value |
|---|---|
| Width | 3.05 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 50 V |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Current | 2 A |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Max Power Dissipation | 360 mW |
| Power Dissipation | 360 mW |
| Threshold Voltage | 1 V |
| Number of Channels | 1 |
| Input capacitance | 41 pF |
| Continuous Drain Current (ID) | 230 mA |
| Rds On Max | 3.5 Ω |
| Drain to Source Voltage (Vdss) | 60 V |
| Turn-On Delay Time | 2.3 ns |
| Turn-Off Delay Time | 6.7 ns |
| Rise Time | 3 ns |
| Dual Supply Voltage | 60 V |
| Gate Charge | 1 nC |
| Drain to Source Resistance | 2.2 Ω |
| Nominal Vgs | 1 V |
| Max Dual Supply Voltage | 60 V |
| Recovery Time | 14.5 ns |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 60 V |
| On-State Resistance | 3.5 Ω |
| Schedule B | 8541210080 |
| Package Quantity | 3000 |
| Gate to Source Threshold Voltage | 1 V |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 81354
Distributors
pcbx
pcbxUnit Price$0.13508
Ext.Price$0.13508
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13508 | $0.13508 |
| 10 | $0.07943 | $0.79430 |
| 50 | $0.05679 | $2.83950 |
| 100 | $0.04061 | $4.06100 |
| 500 | $0.04001 | $20.00500 |
| 1000 | $0.03941 | $39.41000 |
| 3000 | $0.02830 | $84.90000 |
| 5000 | $0.02503 | $125.15000 |
| 10000 | $0.02214 | $221.40000 |
