EEEFK1V101XP
Manufacturer:
Panasonic
Mfr.Part #:
EEEFK1V101XP
Datasheet:
Description:

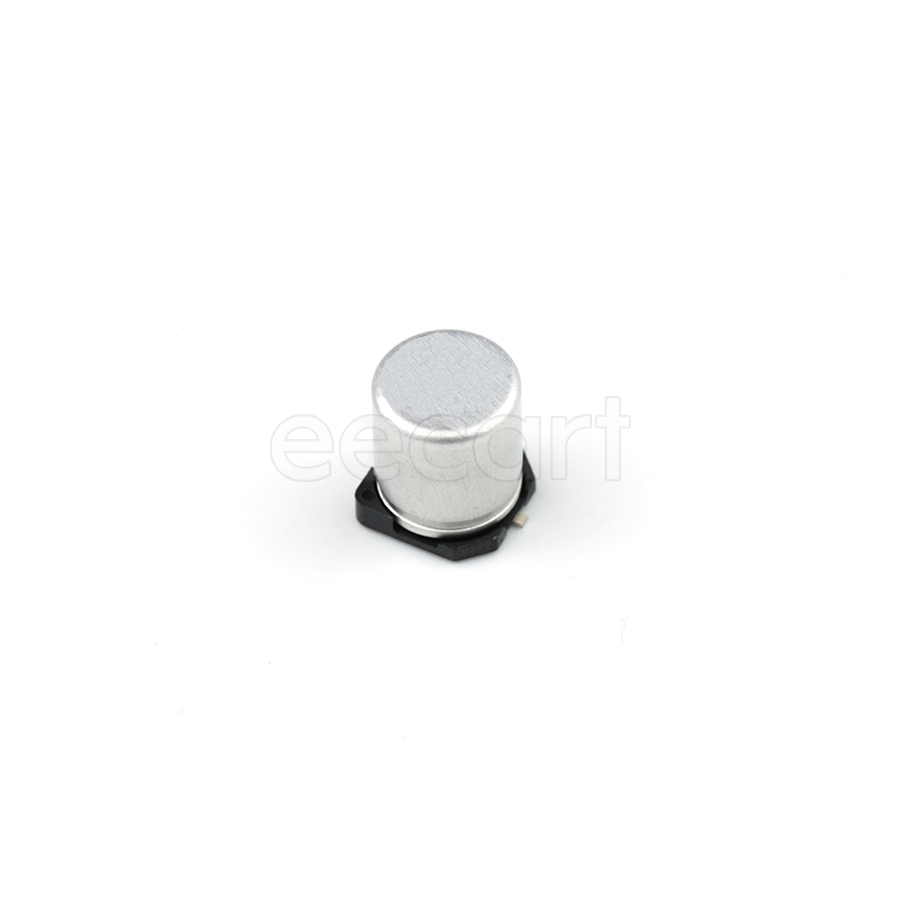

Aluminum Electrolytic Capacitors SMD,6.30mm×7.70mm SMD/SMT 100 µF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 340 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 280 mA |
| Height - Seated (Max) | 7.7 mm |
| Length | 7.7 mm |
| Width | 7.8 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Height | 7.7 mm |
| Case/Package | Radial |
| Material | Aluminium |
| Mount | PCB, Surface Mount |
| Packaging | Reel |
| Voltage Rating | 35 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 35 V |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Contact Plating | Tin |
| Impedance | 340 mΩ |
| Ripple Current (AC) | 280 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 210 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz |
Stock: 27285
Distributors
pcbx
pcbxUnit Price$0.15658
Ext.Price$0.15658
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15658 | $0.15658 |
| 10 | $0.13914 | $1.39140 |
| 50 | $0.12365 | $6.18250 |
| 100 | $0.11366 | $11.36600 |
| 500 | $0.10448 | $52.24000 |
| 1000 | $0.09604 | $96.04000 |
| 3000 | $0.08828 | $264.84000 |
| 5000 | $0.08114 | $405.70000 |
