EEUFR0J221
Manufacturer:
Panasonic
Mfr.Part #:
EEUFR0J221
Datasheet:
Description:

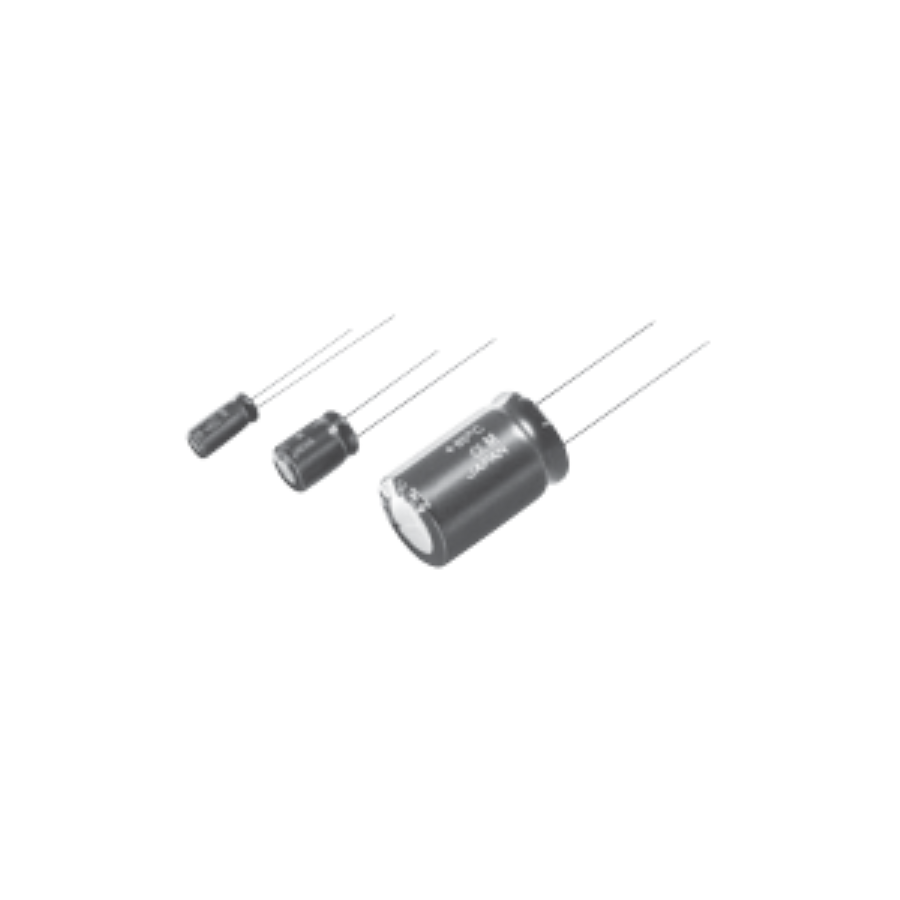

Aluminum Electrolytic Capacitors Radial,6.30mm×11.20mm Through Hole 220 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| Life (Hours) | 5000 Hours |
| Termination | Radial |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 11.2 mm |
| Packaging | Bulk |
| Voltage Rating | 6.3 V |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 500 µm |
| Lead Pitch | 2.5 mm |
| Voltage | 6.3 V |
| REACH SVHC | Yes |
| Impedance | 130 mΩ |
| Ripple Current (AC) | 455 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 318.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 455 mA @ 100 kHz |
Stock: 754
Distributors
pcbx
pcbxUnit Price$0.11491
Ext.Price$0.11491
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11491 | $0.11491 |
| 10 | $0.10408 | $1.04080 |
| 50 | $0.09427 | $4.71350 |
| 100 | $0.07885 | $7.88500 |
| 500 | $0.06596 | $32.98000 |
| 1000 | $0.06291 | $62.91000 |
| 3000 | $0.06000 | $180.00000 |
| 5000 | $0.05723 | $286.15000 |
