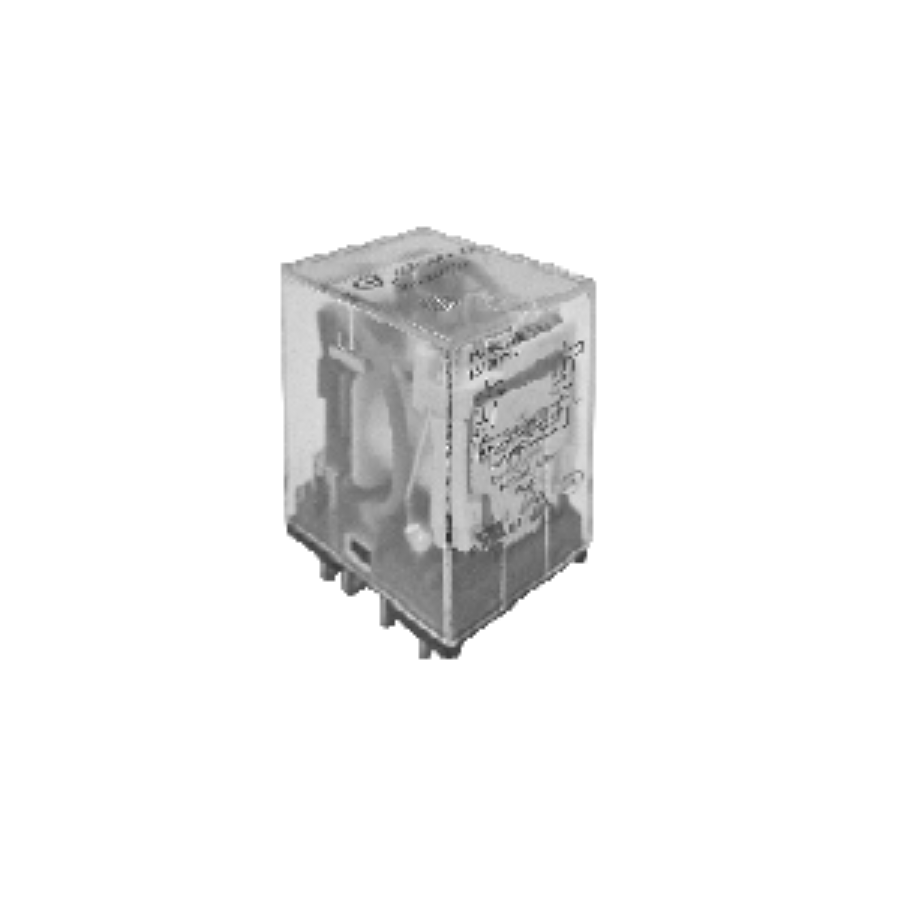

HF18FF/024-3Z2
Manufacturer:
Hongfa
Mfr.Part #:
HF18FF/024-3Z2
Datasheet:
Description:
Power Relays Through Hole 24 V General Purpose
| Parameter | Value |
|---|---|
| Length | 28 mm |
| Width | 21.5 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Height | 36 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver Nickel (AgNi) |
| Coil Voltage (DC) | 24 V |
| Coil Type | Non-Latching |
| Relay Type | General Purpose |
| Operate Time | 20 ms |
| Release Time | 15 ms |
| Contact Current Rating | 7 A |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC, 30 VDC |
| Must Operate Voltage | 19.2 V |
| Must Release Voltage | 2.4 V |
Stock: 1
Distributors
pcbx
pcbxUnit Price$4.22448
Ext.Price$4.22448
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.22448 | $4.22448 |
| 10 | $3.60029 | $36.00290 |
| 25 | $3.32581 | $83.14525 |
| 50 | $3.07226 | $153.61300 |
| 100 | $2.83803 | $283.80300 |
| 300 | $2.74513 | $823.53900 |
| 500 | $2.65528 | $1327.64000 |
| 1000 | $2.57603 | $2576.03000 |
| 3000 | $2.53947 | $7618.41000 |
