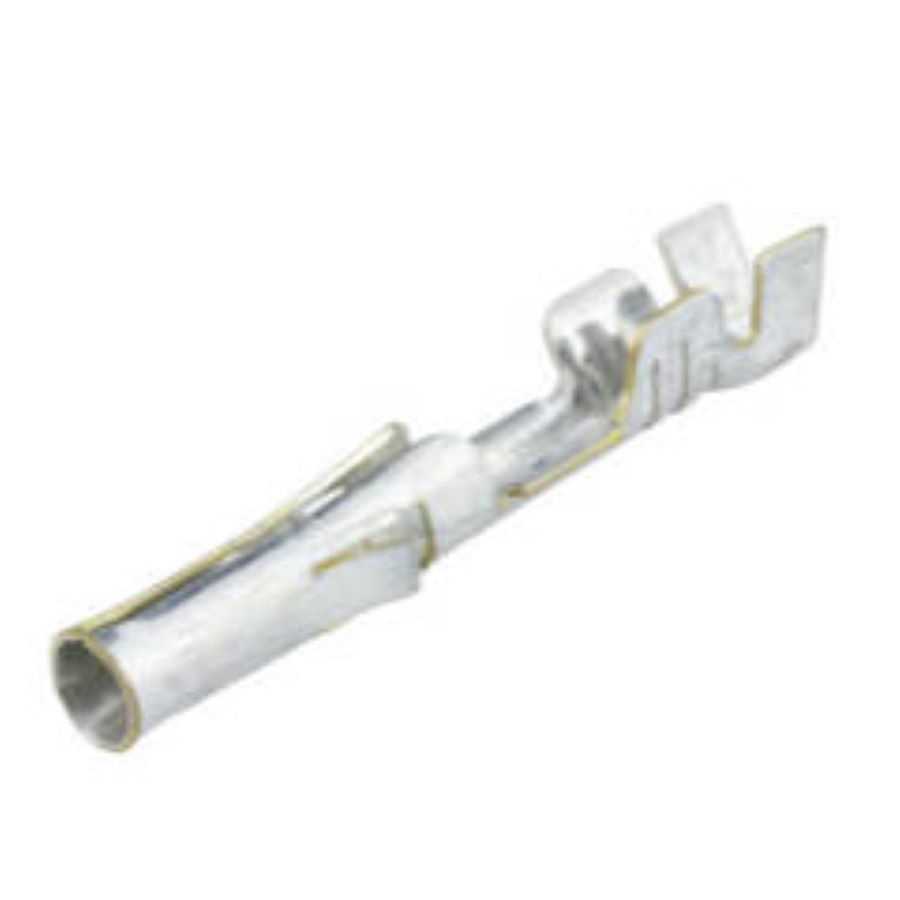

02-09-1119
Manufacturer:
Molex
Mfr.Part #:
02-09-1119
Datasheet:
Description:
IC and Component Sockets Through Hole Connector, PCB, Signal, Socket Pitch:5.03 mm
| Parameter | Value |
|---|---|
| Length | 21.97 mm |
| Width | 6.35 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.83 mm |
| Packaging | Bulk |
| Depth | 5.33 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 360.010594 mg |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5.03 mm |
| Max Current Rating | 17 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| Connector Type | Connector, PCB, Signal, Socket |
| Wire/Cable Gauge | 22 AWG |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Plating | Tin |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 129441
Distributors
pcbx
pcbxUnit Price$0.22552
Ext.Price$0.22552
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22552 | $0.22552 |
| 10 | $0.16914 | $1.69140 |
| 50 | $0.14115 | $7.05750 |
| 100 | $0.11779 | $11.77900 |
| 500 | $0.11116 | $55.58000 |
| 1000 | $0.08961 | $89.61000 |
| 3000 | $0.08819 | $264.57000 |
| 5000 | $0.08679 | $433.95000 |
| 10000 | $0.08542 | $854.20000 |
| 30000 | $0.08407 | $2522.10000 |
